TECHNICAL SHEET Digue Express® Anti flooding dike
DESCRIPTION
Digue Express® is a modular and versatile flood dike, suitable for water levels ranging from 30 cm to 2 meters and unlimited length.
It is used:
- As a preventive measure to the announcement of a flood;
- As a curative by immersion and then by pumping the area to be protected.
Equipped with standardized connections, quick to implement, Digue Express® ensures a very high level of protection and safety of traffic lanes, industrial sites, historical or strategic.
TECHNICAL CHARACTERISTICS OF THE FABRICS:
The dike anti flooding is made of PVC fabric according to the following technical sheet:
IMPLEMENTATION
Deplaying on the site

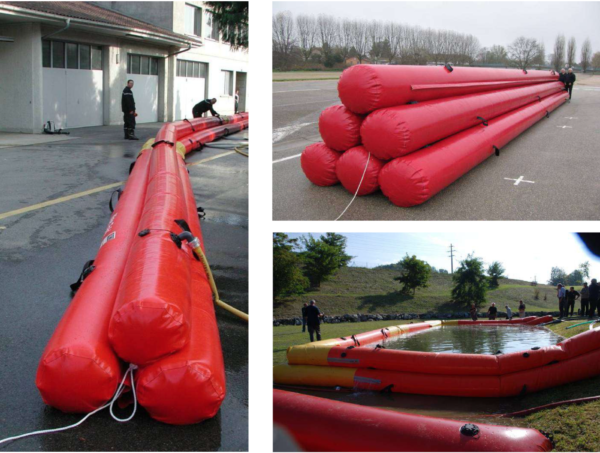

The first step is to unfold and run the dikes on the side to be protected.
Once the dikes have been unfold, close the valves and the tight zips for inflation.
Inflation
The inflation of the tubes is effected by means of a thermal blower.
The dikes are filled with air to facilitate their placement and to have better ground contact.
Protection will only be strengthened.
Disposition of the bi-tubes
The two tubes are laced between them. Lacing is done from the middle to the ends of the tubes.
They must be tight before receiving the monotube.
Setting the sleeves (junction)
The cuffs are used to link two dike lengths while maintaining the seal and therefore the protection at this junction.
Water filling
The water filling is done using Storz or Guillemin fittings (1/2 symmetrical fitting).
During filling, the air is expelled by an overflow. The dykes thus retain their shape.
When the dikes are filled, the excess water is evacuated by the overflow.
Drain and storage
The emptying is fast and is carried out thanks to the tight zips.

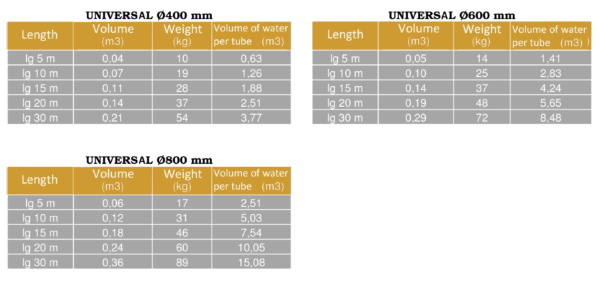

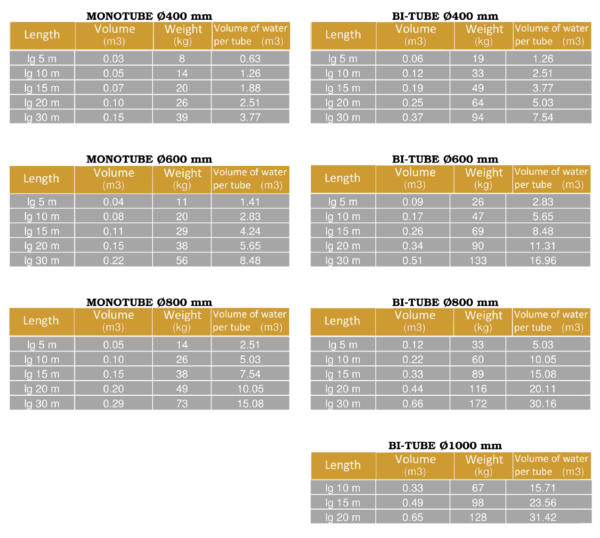

FOLDED VOLUMES, EMPTY WEIGHTS AND WATER FILLING (given weight for fabric RCY 900)
